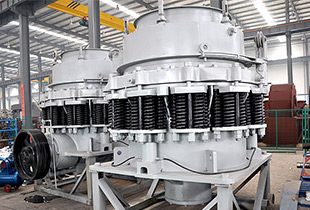

ZTS Cone Crusher
The ZTS Cone Crusher is a high-performance model optimized and improved on the basis of PY Spring Cone Crusher. The ZTS Cone Crusher is widely used for secondary and fine crushing in the fields of mining, building materials, metallurgies and so on. The ZTS Cone Crusher can crush materials with middle and high hardness, such as, metal ore, basalt, granite, limestone, cobblestone, sandstone and so on.
InquiryFeatures
● Customers can choose suitable crushing chamber of each model according to the material feature, fineness of the end product and particle size requirement.● Unique dustproof and sealing structure extend working life of lubricants and other spare parts
● The key parts are made of special materials to make the strong crushing force possible,
● Equipped with long crushing arm to ensure huge stroke, strong crushing force, and high capacity.
● Hydraulic cleaning system keeps the cavity clean, and it's easy to operate, thus reducing the stoppage of machines.
● Reliable performance, low investment, and long service life of quick-wear parts.
Technical data
| Model | Cavity Size | Max Feeding Size(mm) | Adjusting Range of Output Size(mm) | Capacity(t/h) | Motor Power (KW) | Weight (t) | Overall Dimension(mm) |
| ZTS36B | Fine | 85 | 9~22 | 45~91 | 75 | 14.5 | 2656×1746×2410 |
| Coarse | 150 | 13-38 | 59~163 | ||||
| Extra Coarse | 152 | 25-38 | 118~163 | ||||
| ZTS36D | Fine | 35 | 3~13 | 27~90 | 15 | ||
| Medium | 65 | 5~16 | 36~100 | ||||
| Coarse | 85 | 6~19 | 59~129 | ||||
| ZTS51B | Fine | 115 | 13~31 | 109~181 | 160 | 26.5 | 2958×2354×3156 |
| Medium | 178 | 16~38 | 132~253 | ||||
| Coarse | 205 | 19~51 | 172~349 | ||||
| Extra Coarse | 220 | 25~51 | 236~358 | ||||
| ZTS51D | Fine | 54 | 3~16 | 36~163 | 27 | ||
| Medium | 76 | 6~16 | 82~163 | ||||
| Coarse | 89 | 8~25 | 109~227 | ||||
| Extra Coarse | 113 | 16~25 | 209~236 | ||||
| ZTS66B | Fine | 178 | 16~38 | 181~327 | 220 | 51 | 3941×2954×3771 |
| Medium | 205 | 22~51 | 258~417 | ||||
| Coarse | 228 | 25~64 | 299~635 | ||||
| Extra Coarse | 313 | 38~64 | 431~645 | ||||
| ZTS66D | Fine | 60 | 5~13 | 90~209 | 52 | ||
| Medium | 76 | 6~19 | 136~281 | ||||
| Coarse | 113 | 10~25 | 190~336 | ||||
| Extra Coarse | 125 | 13~25 | 253~336 | ||||
| ZTS84B | Fine | 236 | 19~38 | 381~726 | 315 | 90 | 4613×3251×4732 |
| Medium | 284 | 25~51 | 608~998 | ||||
| Coarse | 314 | 31~64 | 789~1270 | ||||
| Extra Coarse | 391 | 38~64 | 880~1361 | ||||
| ZTS84D | Fine | 89 | 5~16 | 190~408 | 92 | ||
| Medium | 113 | 10~19 | 354~508 | ||||
| Coarse | 151 | 13~25 | 454~599 | ||||
| Extra Coarse | 172 | 16~25 | 508~653 |
Note: The capacity above is tested as per medium hard limestone.
Any change of ZTS Cone Crusher technical data shall not be advised additionally.
