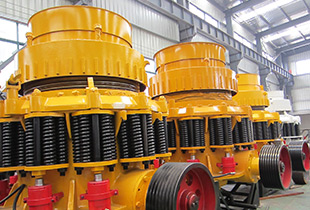

ZTC Cone Crusher

Gold is a precious metal mined to create practical and ornamental pieces of work. Refined gold ore can be melted, poured and cast into almost any shape to make jewelry. There are numerous industrial applications for gold, as well. Many electronics and medical devices rely on gold's ability to conduct electricity and resist corrosion.Gold in the ore were very low, in order to extract gold, the ore must be processed by gold mine processing plant. In this process, many gold mining types of equipment are used, such as gold refining and purifying equipment, but the ore firstly must be crushed and grinded, thus the gold is separated from the ore.

Inquiry

Features

● Simple and sound design of ZTC Cone Crusher is ideal for crushing operations;
● The spring-loaded discharging system filters non-crushable materials automatically to avoid any damage to the machine;
● The interlocked lubrication unit is equipped with a main motor for additional safety;
● A rib liner is installed at the bottom of the frame to protect it from wearing.
● Generally there are four types of ZTC Cone Crushers: the SGC Standard or the Coarse type, the SGM Fine or the Medium type, the SGF Short Head type &SGEF Super Fine Type. All these types are used for secondary and tertiary crushing both in stationary and portable applications.

Technical data

Standard	Chamber		Min discharge opening (mm)	Power	Capacity(t/h)										Weight(kg)
		Max feedsize			Close discharge size(mm)
		（mm）			6	10	13	16	19	22	25	38	51	64
ZTC600	C	95	10	37-45		20	25	30	35	45	50	76			5300
ZTC600	M	72	6	37-45	18	20	25	30	35	40	45	60			5300
ZTC1000	C	160	13	90-110			80	100	135	150	175	235			10800
	M	115	10	90-110		65	75	90	120	135	150				10800
	F	80	8	90-110	52	62	72	78	115						10510
	EF	50	6	90-110	50	55	65	70	102						10510
ZTC1160	C	180	13	110-132			115	135	150	180	200	260			15500
	M	130	10	110-132		100	110	120	135	165	175				15500
	F	90	10	110-132		80	105	110	140						15500
	EF	60	6	110-132	60	74	105	110	130						15500
ZTC1300	C	200	16	132-160				150	180	200	230	310	390		22300
	M	150	13	132-160			115	140	160	190	210				22300
	F	102	10	132-160		90	115	145	160						22300
	EF	70	8	132-160		88	110	135	155						22300
ZTC1380	C	215	19	185-220					200	220	260	350	440		26300
	M	160	16	185-220				155	180	200	220				26300
	F	115	13	185-220			150	190	210	230					26300
	EF	76	8	185-220		122	148	185	200						26300
ZTC1500	C	235	22	185-220						265	310	420	525	580	37750
	M	175	19	185-220					215	240	265	320			37750
	F	130	13	185-220			180	210	235	255	275				37750
	EF	90	10	185-220		148	178	200	220						37750
ZTC1680	C	267	22	250-300						330	390	525	655	725	44300
	M	203	16	250-300				230	270	300	330				44300
	F	140	13	250-300		185	225	265	340						44300
	EF	95	10	250-300		180	220	260	335						44300

Note: The capacity above is tested as per medium hard limestone.
Any change of ZTC Cone Crusher technical data shall not be advised additionally.
