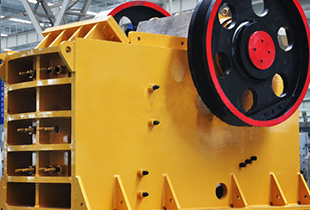

Jaw Crusher
The Bogu Jaw Crusher is widely used in mining, building materials, chemical industry, metallurgy and so on. The Jaw Crusher is suitable for primary and secondary crushing all kinds of minerals and rocks with compressive strength less than 320 MPa.
InquiryFeatures
● Simple structure, easy maintenance;● High crushing ratio, even output granularity;
● High reliability, low investment;
● Low noise, less dust.
Technical data
| Model | Feed Opening Size (mm) | Max. Feeding Size (mm) | Adjustable Range of Output Size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) | Overall Dimension (mm) |
| PE250×400 | 250×400 | 200 | 20-50 | 5-20 | 15 | 2.9 | 1430×1310×1340 |
| PE400×600 | 400×600 | 350 | 40-100 | 15-60 | 30-37 | 6.8 | 1700×1732×1653 |
| PE500×750 | 500×750 | 425 | 50-100 | 40-100 | 45-55 | 11.2 | 2035×1921×2000 |
| PE600×900 | 600×900 | 480 | 65-160 | 60-140 | 55-75 | 16.5 | 2290×2206×2370 |
| PE750×1060 | 750×1060 | 630 | 80-150 | 80-230 | 90-110 | 29 | 2655×2302×3110 |
| PE900×1200 | 900×1200 | 750 | 95-165 | 140-320 | 110-132 | 54.5 | 3789×3050×3025 |
| PE1000×1200 | 1000×1200 | 850 | 105-185 | 180-400 | 160-200 | 56.5 | 3900×3320×3280 |
| PE1200×1500 | 1200×1500 | 1020 | 150-300 | 250-800 | 220-250 | 99.6 | 4300×3540×4043 |
| PEX150×250 | 150×250 | 125 | 10-40 | 1-3 | 5.5 | 0.85 | 896×745×935 |
| PEX150×750 | 150×750 | 125 | 12-45 | 5-16 | 15 | 3.8 | 1205×1495×1203 |
| PEX250×750 | 250×750 | 210 | 25-60 | 10-40 | 22-30 | 5 | 1667×1545×1020 |
| PEX250×1000 | 250×1000 | 210 | 25-60 | 15-50 | 30-37 | 6.8 | 1964×1550×1380 |
| PEX250×1200 | 250×1200 | 210 | 25-60 | 20-60 | 37-45 | 8.5 | 2192×1605×1415 |
Note: The capacity above is tested as per medium hard limestone.
Any change of Jaw Crusher technical data shall not be advised additionally.
