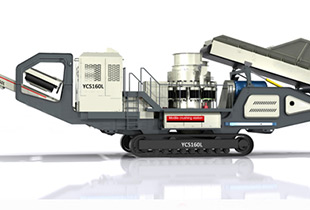

Tracked Cone Crushing Plant
LD series cone crushing plants (crawled mobile cone crushing station) are the best solution of demolition recycling which heavily emphasizemobility and efficiency. The compact design ensures LD series crushing plants have the best transportability andmore crushing capacity.
InquiryFeatures
● Move easily.● Compactly structured and simple to operate.
● High cost-performance ratio.
● Wide application.
● Superior performance and convenient to maintain.
● Adjustable configuration
Technical data
| Model | LD-S36 | LD-S51 | LD-HP220 |
| Cone Crusher | S36" | S51" | HP220 |
| Belt Feeder | GLD1500x5M | GLD1500x5M | GLD1500x5M |
| Hopper Volume (M3) | 4 | 5 | 5 |
| Feeding Height (mm) | 2900 | 3100 | 3100 |
| Main Conveyor | B800x8 M | B1000x9 M | B1000x9 M |
| Height of Conveyor (mm) | 2600 | 3100 | 3100 |
| Generator (KW) | 150 | 270 | 330 |
| Transport Length (mm) | 12000 | 12500 | 12500 |
| Transport Width (mm) | 3200 | 3200 | 3200 |
| Transport Height (mm) | 3700 | 3900 | 3900 |
| Total Weight (t) | 34.4 | 47 | 40 |
Note:Any change of Tracked Cone Crushing Plant technical data shall not be advised additionally.
