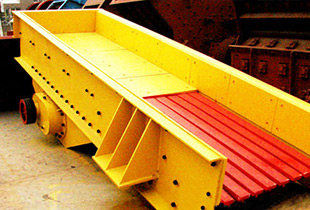

Vibrating Feeder
The Vibrating Feeder is a kind of linear direction feeding equipment. It can send shaped and granule materials into crusher evenly, timely and continuously as well as screen the materials roughly. The vibrating feeder is widely used in crushing and sieving production line such as metallurgy, building material, chemical industry, coal, mining and grinding industry.
InquiryFeatures
● Smoothly vibrating and long service life● Vibrating force adjustable, easy to operation.
● Low noise and power consumption
● Simple structure, easy to maintenance.
Technical data
| Model | Feeding Chute Size (mm) | Max. Feeding Size(mm) | Capacity(t/h) | Motor Power(kw) | Weight(kg) | Overall Dimension(mm) |
| GZD-750×2500 | 750×2500 | 300 | 50-80 | 3 | 1590 | 2580×1100×1400 |
| GZD-850×3000 | 850×3000 | 400 | 80-120 | 2X2.2 | 3895 | 3110×1800×1600 |
| GZD-960×3800 | 960×3800 | 500 | 120-210 | 11 | 3980 | 3850×1950×1630 |
| GZD-1100×4200 | 1100×4200 | 580 | 200-430 | 15 | 4170 | 4400×2050×1660 |
| GZD-1100×4900 | 1100×4900 | 580 | 280-500 | 15 | 4520 | 5200×2050×1700 |
| GZD-1300×4900 | 1300×4900 | 650 | 450-600 | 22 | 5200 | 5200×2350×1750 |
| GZD-1500×6000 | 1500×6000 | 800 | 500-700 | 30 | 8670 | 6082×2995×2095 |
Note:Any change of Vibrating Feeder technical data shall not be advised additionally.
