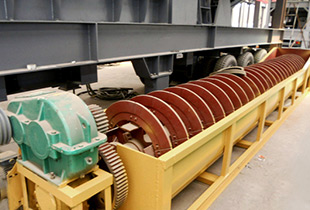

Screw Sand Washing Machine
The screw sand washing machine is mainly used for sand processing, electric pole factory, building work site and concrete dam, various sands classifying and dewatering. This machine has three functions: washing, dewatering, classifying.
InquiryFeatures
● High degree cleaning-up;● Reasonable structure;
● Large capacity;
● Low power consumption.
Technical data
| Model | Spiral Diameter (mm) | Number of Spiral (pcs) | Feeding Size (mm) | Capacity (t/h) | Water Consumption (m3/h) | Motor Power (kw) | Overall Dimensions (mm) | Weight (t) |
| XL-762 | 762 | 1 | <10 | 75 | 9-63 | 11 | 9070×2650×1530 | 5.20 |
| 2XL-762 | 762 | 2 | <10 | 140 | 20-150 | 2×11 | 9070×3250×1530 | 7.45 |
| XL-914 | 914 | 1 | <10 | 100 | 10-80 | 15 | 9070×2650×1638 | 6.35 |
| 2XL-914 | 914 | 2 | <10 | 200 | 60-300 | 2×15 | 9070×3510×1638 | 11.30 |
| XL-1118 | 1118 | 1 | <10 | 175 | 13-168 | 22 | 9070×2830×1900 | 12.70 |
| 2XL-1118 | 1118 | 2 | <10 | 350 | 60-600 | 2×22 | 9070×3890×1900 | 16.50 |
Note:Any change of Screw Sand Washing Machine technical data shall not be advised additionally.
