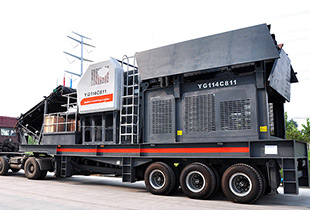

Mobile Jaw Crushing Plant
Mobile Jaw Crusher plant provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the client.
InquiryFeatures
● Incorporated design.● Truck mounted.
● Quick road transportation.
● With support legs on truck, quick to set-up.
Technical data
Mobile jaw crusher plant model and main unit parameter:
| Parameter model | Transport length (mm) | Transport height (mm) | Transport width (mm) | Max. height (mm) | Max. width (mm) | Belt conveyor height (mm) | Total weight (ton) |
| YG938E69 | 11200 | 3900 | 2450 | 4700 | 2900 | 2600 | 42 |
| YG1142E710 | 13000 | 4400 | 2450 | 5100 | 3100 | 2600 | 55 |
| YG1349E912 | 15000 | 4800 | 3000 | 5600 | 3300 | 2800 | 72 |
Configuration
| Parameter model | Feeder spec | Jaw crusher | Belt conveyor | Extended belt conveyor | Generator | Capacity (t/h) | Power (kw) |
| YG938E69 | GZD-960X3800 | PE600X900 | B650X7M | Optional | Optional | 70-150 | 91.5 |
| YG1142E710 | GZD1100X4200 | PE750X1060 | B800X9M | Optional | Optional | 90-200 | 134 |
| YG1349E912 | GZD-1300X4900 | PE900X1200 | B1000X11M | Optional | Optional | 150-300 | 146 |
Note: Any change of Mobile Jaw Crushing Plant technical data shall not be advised additionally.
